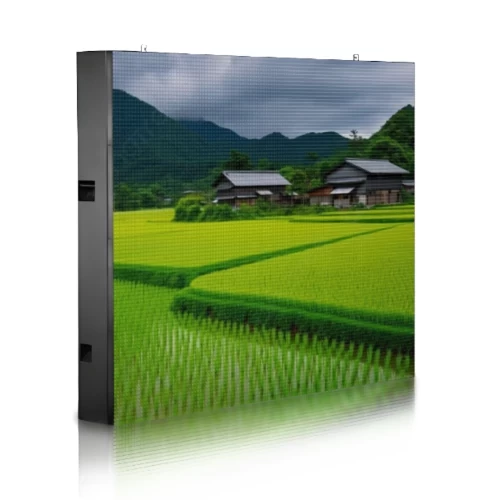

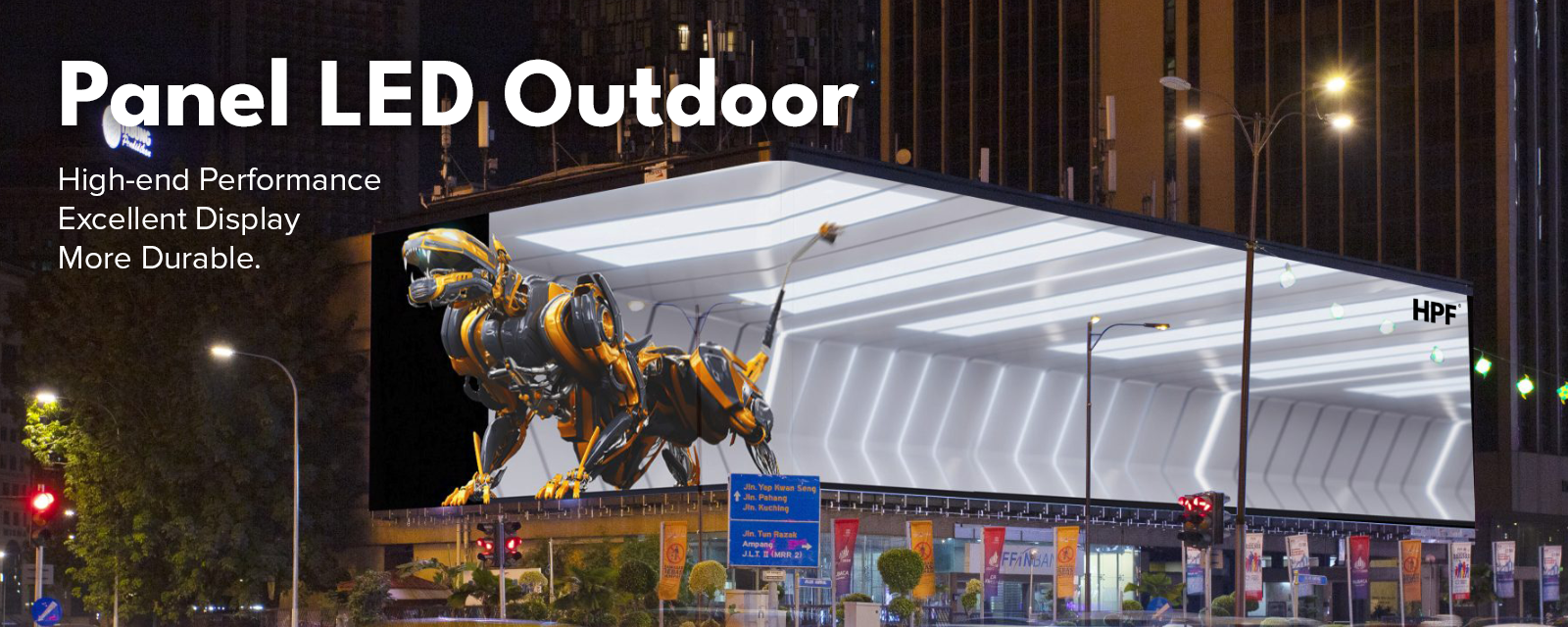

Panel LED Outdoor
Specifically designed for outdoor use, our LED displays deliver high-end performance at competitive prices. Using the finest quality components available today, the lightweight yet rugged tiles ensure excellent image quality and flicker-free video. The unique all-weather design guarantees reliability under the toughest operating conditions.
Features
- LED Pixel
- Energy-saving
- UV Resistant
| Specification | |
|---|---|
| Drive Mode | 1/2 Scan |
| LED Configuration | 1PR1PG1PB |
| Pixel Density | 10.000 dits/sqm |
| Cabinet Size | 960*960 mm |

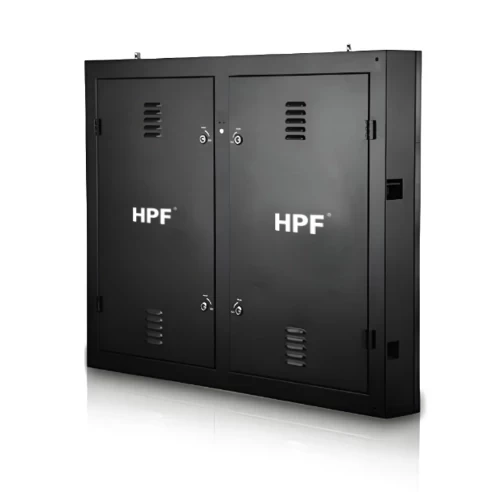

| Material | Steel Waterproof Cabinet |
| Brighness | 5000 cd/m² |
| Voltage | AC200V ± 10% |
| Maximum Power | 900 w/sqm |
| Average Power | 300 w/sqm |
| Viewing Distance | ≥ 10 m |
| Refresh Rate | 1920 Hz |
| Gray Level | 16 bits |
| Temperature Operation | -10°C ~ 60°C |
| Humadity Operation | 10% ~ 85% |
| Ingress Protection | IP65 |
Which is right for you?
P4.3D
Pixel pitch 4 mm
Viewing distance ≥ 4 m
Iron metal die-cast cabinet
P8
Pixel pitch 8 mm
Viewing distance ≥ 8 m
Steel Waterproof Cabinet

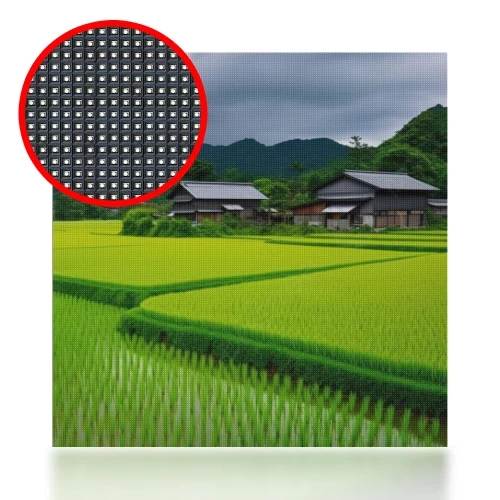

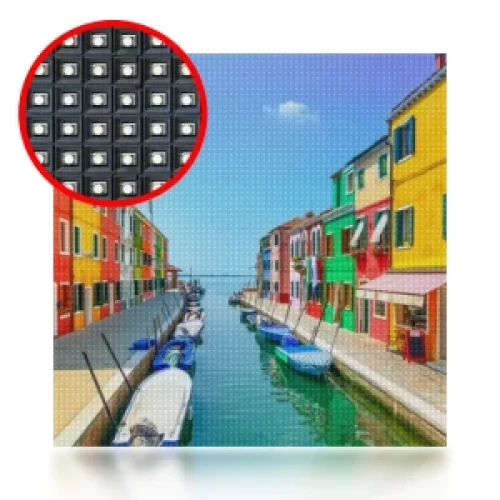

P10
Pixel pitch 10 mm
Viewing distance ≥ 10 m
